Avensis 2004 D4D Map Sensor


cmia
 Share

Recommended Posts


It's on the inlet manifold.

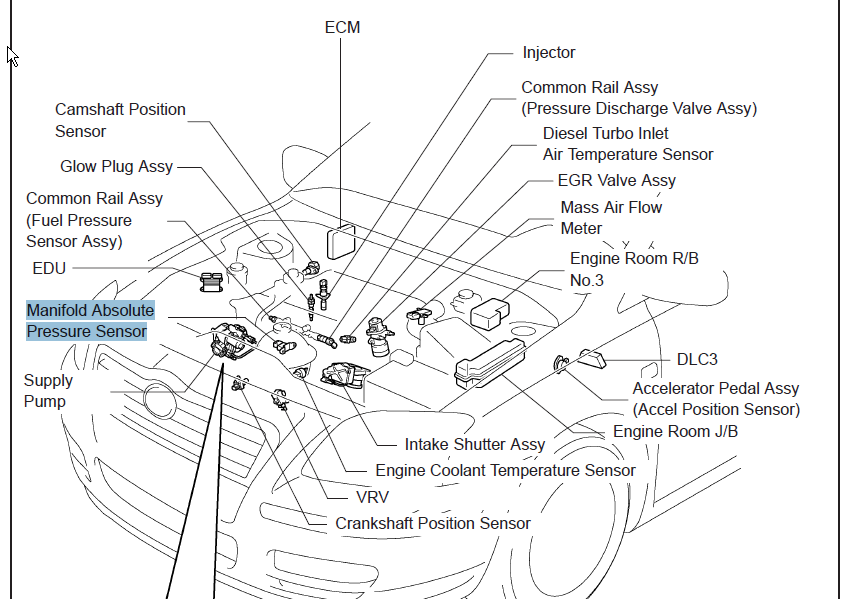

See attachment, for part# PM PartsKing.

post-84513-0-99801200-1297940018_thumb.p

Link to comment
Share on other sites

It's on the inlet manifold.

See attachment, for part# PM PartsKing.

thanks!

where are you getting the images from ?

According to toyota it doesnt have a MAP!

Link to comment
Share on other sites

According to toyota it doesnt have a MAP!

Hmm.. interesting...

The above "locations" picture is from the Toyota Avensis Diagnostics Guide, model 2002-2007.

I think Toyota built those. :)

The picture is for the 1CD-FTV engine.

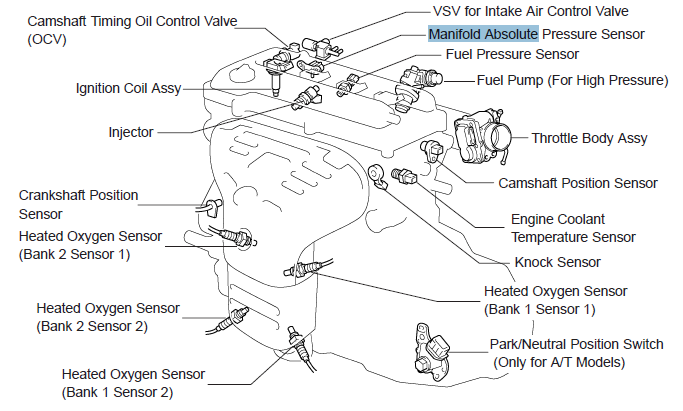

In case you would have a 1AZ-FSE engine, it's in a different location. The attachment shows a whole lot of other sensor locations that are asked for here repeatedly.

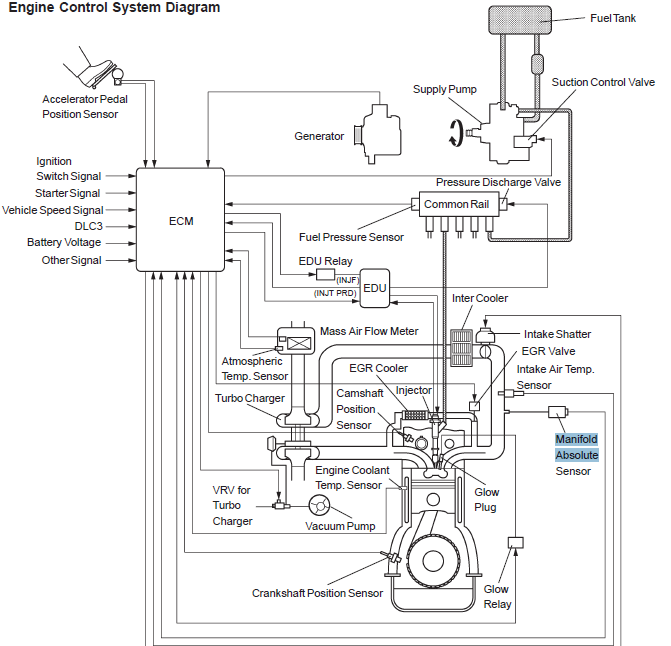

Another nice one is the entire engine control diagram.

BTW, this manual was part of a huge download, but I forgot the location.

I think I once got the URL from t-spirit-pete.

I don't own a 2002-2007 Avensis, but a 2010 one.

I'm just keeping this kind of documentation as a reference.

I hope to lay hands on a similar download of Avensis 2009- onwards manuals some time.

post-84513-0-72128700-1298041185_thumb.p

post-84513-0-41784200-1298041205_thumb.p

Link to comment
Share on other sites


  • 12 years later...

I'm trying to find it on my Toyota Avensis T3 S D-4D
Year: 2006. Can't seem to locate it.

Link to comment
Share on other sites
