Lighting Switch / Instrument Cluster Pic Request

[Lazlo Woodbine]

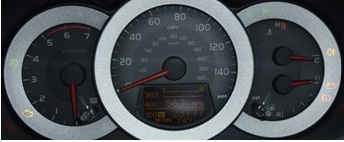

Wondering if anyone could post decent pics of the lighting stalk on a RAV4 with front and rear foglights, plus pics of the fog light indicators in the instrument clusters.

Would also appreciate the part number for the same lighting stalk.

TIA!

[Lazlo Woodbine]

*bump*

[Davrav]

*bump*

Well there's a picture here Lazlo:LINK

That'll get you started at least - no idea of part number though

[tatteam]

*bump*

Maybe this will help.......... ;)

light stalk.pdf

[Lazlo Woodbine]

Well there's a picture here Lazlo:LINK

That'll get you started at least - no idea of part number though

Not the right part, I think, as it appears to be from a RAV4 that only has rear fog lamps.

I'd actually already come across this part on eBay, when looking to see if any were for sale there.

[Lazlo Woodbine]

*bump*

Maybe this will help.......... ;)

Looks like it could be helpful, but is there a better quality image available?

[Davrav]

Well there's a picture here Lazlo:LINK

That'll get you started at least - no idea of part number though

Not the right part, I think, as it appears to be from a RAV4 that only has rear fog lamps.

I'd actually already come across this part on eBay, when looking to see if any were for sale there.

Stalk with front and rear fog lights looks the same but with the additional symbol between the rear symbol and the indicator arrows.

[Lazlo Woodbine]

Stalk with front and rear fog lights looks the same but with the additional symbol between the rear symbol and the indicator arrows.

And where on the instrument cluster does the indicator light appear?

To explain more what I'm hoping to do:

I have a USM RAV4, which does not have any rear fog lamps. I'd like to add some, but would like to use standard switchgear to turn them on, and to have the indicator in the instrument panel show their status too.

[bothwell_buyer]

Not sure what age your car is, but on the early models (4.1) then the dashboard had space for extra switches which I used for spot-lights.

[Guest]

Do these help?

The neighbours think I am now certifiable putting the fogs lights on, on the sunniest/warmest day of the year so far

Gus

[Lazlo Woodbine]

Do these help?

The neighbours think I am now certifiable putting the fogs lights on, on the sunniest/warmest day of the year so far

Gus

Thanks, Gus, that makes things clearer. I note also that you don't seem to have the auto headlight feature; is that right?

Now I need to figure out where to get hold of the switchgear. I'm unsure whether a US Toyota dealer would be able to get hold of the part. Then to figure out whether the switch can be made to illuminate the instrument cluster display.

I've got the 'foglights' ordered. This product I found on eBay replaces the reflecters with a reflecter/light combo, that should have sufficient brightness at its higher intensity to be used in fog, whilst keeping the RAV4 looking as stock as possible;

http://cgi.ebay.com/ebaymotors/06-07-08-09-TOYOTA-RAV4-LED-Rear-Bumper-Reflector-lamp-/150381463055

[Guest]

Correct on the auto lights, that was the model the year after, you need parts-king to work his magic - try the promise of a pie or two

Gus
