Glow Plug Relay

[OldRaver]

Had a look under the relay box but am not confident as to which relay it is. Could anyone help me out please? Is there a picture somewhere or maybe someone could tell me how its described. Couldn't actually see something that says 'glow plug heater relay....' or am I looking in the wrong place? Cheers.

[CharlieFarlie]

[CharlieFarlie]

Mate Please note these are for the 4.3 model but I don't have anything else.. I would imagine there isn't that may differences ?? Well at least its a start ... :thumbsup:

Wee Charlie.

[OldRaver]

Thanks for your reply I've now gone 'tecchy" Not done this before so hope it works!

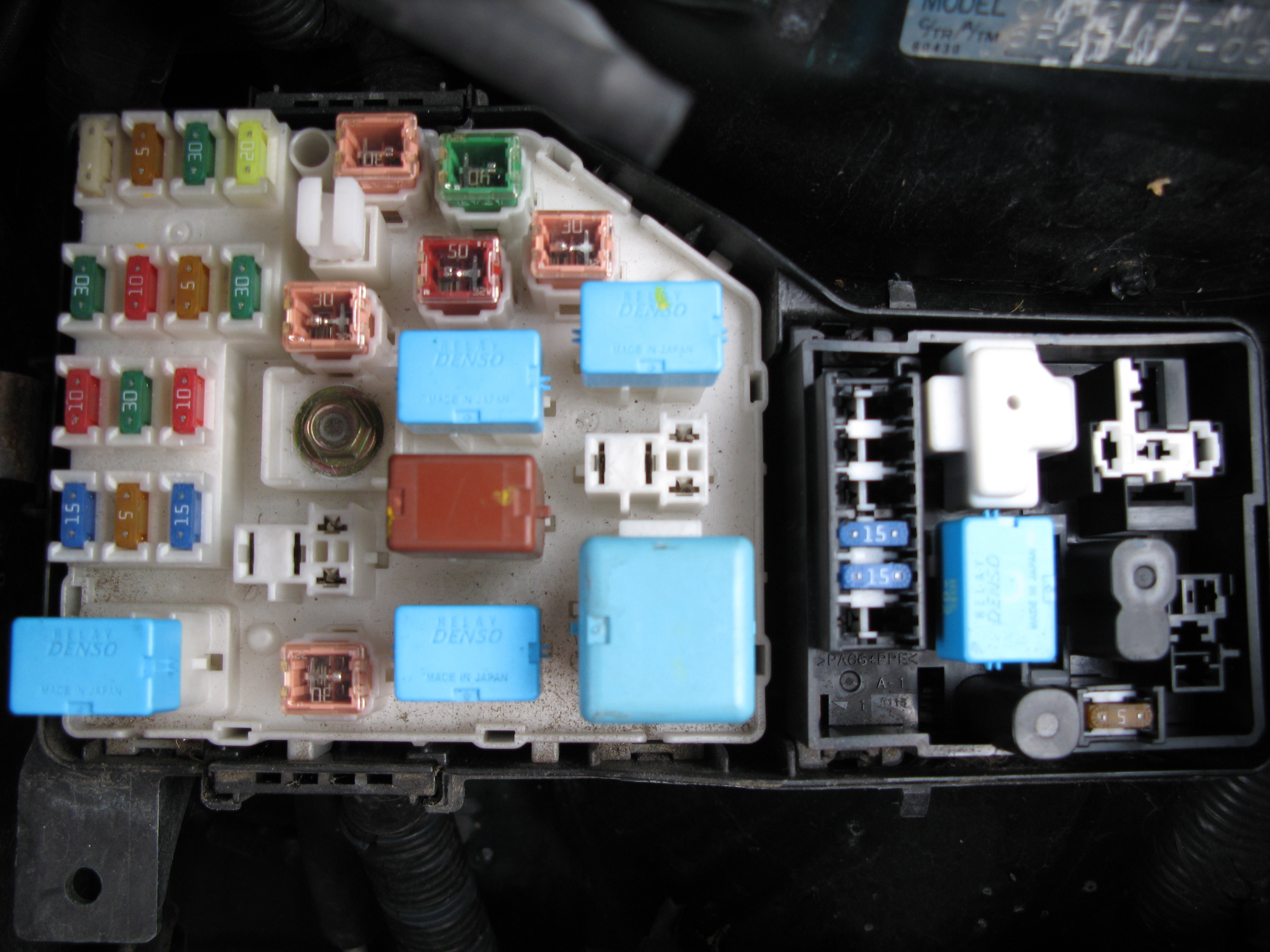

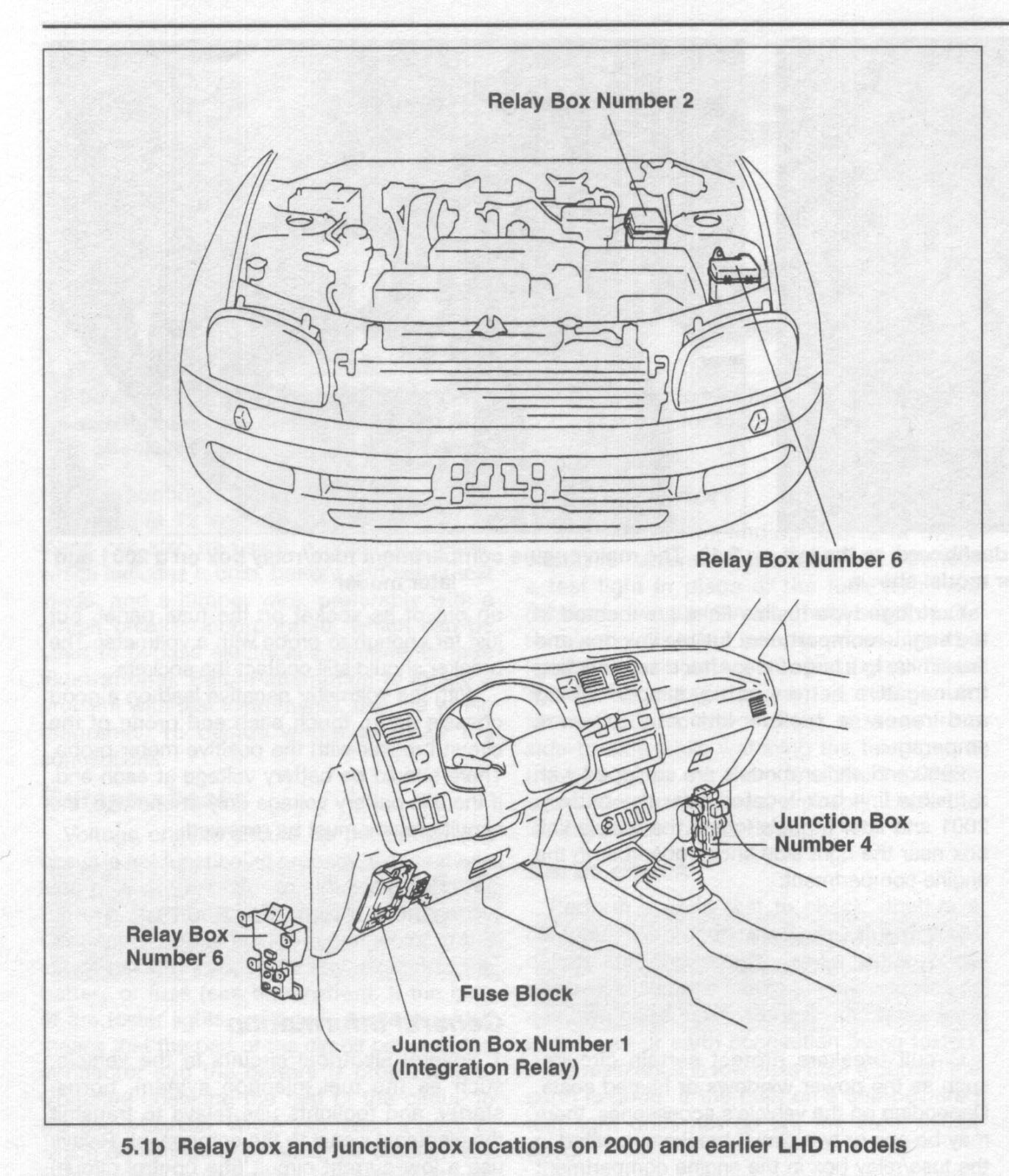

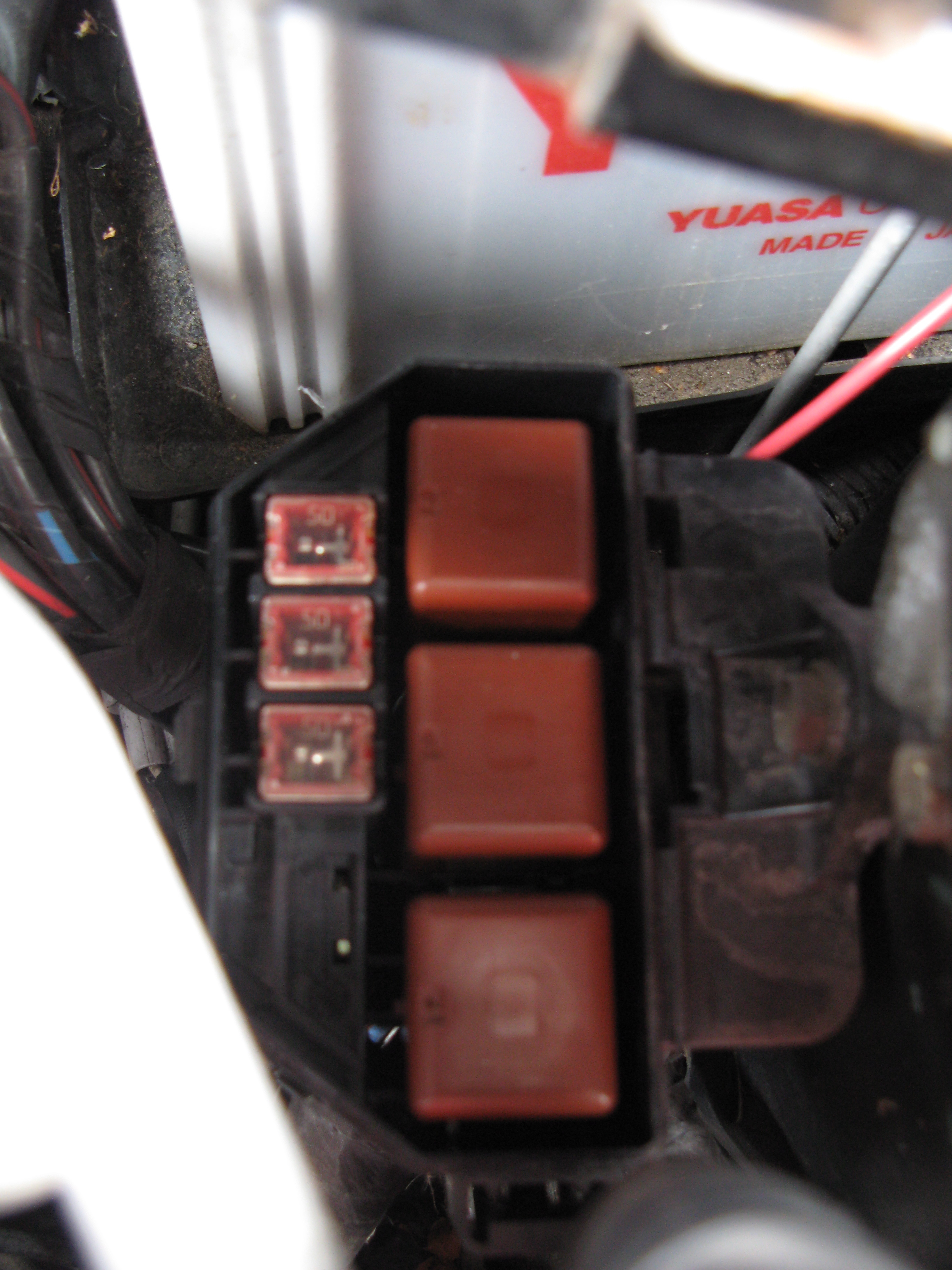

The diagram shows a left hand drive 4.2 but no reason to suppose that the engine compartment is different. Relay box no. 2 is the photo with 3 relays and 3 fuses and relay box no. 6 is the photo with the blue relays and a lot more fuses. At the moment I'm none the wiser as to which might be the glow plug relay......

[CharlieFarlie]

Mate I took all the information from a Workshop PDF. As it likely of Japanese origin this may be why it shows diagram's for left hand drive ?? Not sure to be honest ....

Its also a manual for the 4.3 that I have as stated above.. I just thought it may give a few ideas at least where to start looking.....

Wee Charlie.

[pmb]

Mate I took all the information from a Workshop PDF. As it likely of Japanese origin this may be why it shows diagram's for left hand drive ?? Not sure to be honest ....

Wee Charlie.

Don't the !Removed! drive on the same side of the road as here in the UK? Got a Haynes UK manual that has a schematic saying Starting and Charging system (diesel ) - 2003 onwards and that also prefers LHD models! It mentions the relay but not sure were it is. I'll scan it if you wish.

[anchorman]

I believe it is on the driver side suspension turret but if no, down that pulley side somewhere. Have a look at this;

relay.pdf

[OldRaver]

Wee Charlie, thanks for the info. deffo. got me looking! (and ps I'm into bikes also but not as wonderful as the stuff you have in your stable - without going off the thread last one sold in Feb was a CB750K 1972 now feeling sad and bikeless)

pmb - quote "Don't the !Removed! drive on the same side of the road as here in the UK? Got a Haynes UK manual that has a schematic saying Starting and Charging system (diesel ) - 2003 onwards and that also prefers LHD models! It mentions the relay but not sure were it is. I'll scan it if you wish." yes they drive on the same side as us and my schematic also came from a UK Haynes manual (1994 to Jan 2006) A scan could help. Cheers.

anchorman - your pdf looks like the answer - I'll check it tomorrow when there is daylight again.

Thanks everyone who's contributed. :thumbsup:

[anchorman]

That Haynes manual wants pitching in the bin.

[baz1631]

That Haynes manual wants pitching in the bin.

good evening learned sirs.(well its night time where I am!) regarding the above schematic ? is the relay in the same position on an '02 d4d? PS Anchorman: the recon turbo works fine but still a wee bit "sticky" on kickin' in . and just thought this thread might have an answer.ie:relay on the way out? sorry for the ignorance, hence the flattery at the start of thread!
