Headlight Alignmnet

[billsinc]

My car: 57 Avensis 1.8TR manual petrol

I recently got the passenger side deadlight changed by Halfords. SInce I have noticed that it is out of alignment. Having taken off the upper guard under the bonnet, it is difficult to see how to adjust the headlamp. I need to bring it up. Can anyone advise how i do this?

Thanks

[billsinc]

http://www.carparts-tuning.co.uk/index.php?cl=moredetails&cnid=9eaa312ddb96e0078ae44dc1d9783e5e&anid=1415_FKRFSTY010003-R

I think the back of the headlamp probably looks like this. (picture 5)

[t-spiritpete]

My car: 57 Avensis 1.8TR manual petrol

I recently got the passenger side deadlight changed by halfords. SInce I have noticed that it is out of alignment. Having taken off the upper guard under the bonnet, it is difficult to see how to adjust the headlamp. I need to bring it up. Can anyone advise how i do this?

Thanks

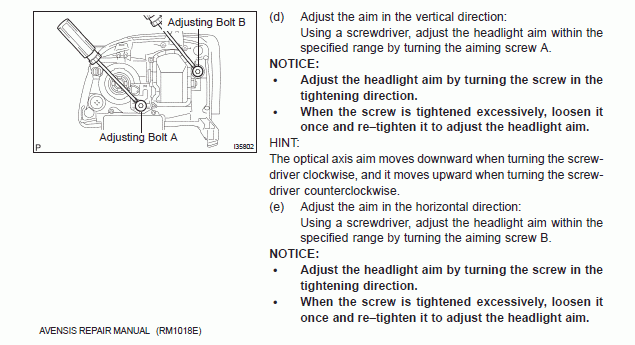

Take a look at this diagram it shows you how, click on it to enlarge it.

Regards Pete.

[billsinc]

My car: 57 Avensis 1.8TR manual petrol

I recently got the passenger side deadlight changed by halfords. SInce I have noticed that it is out of alignment. Having taken off the upper guard under the bonnet, it is difficult to see how to adjust the headlamp. I need to bring it up. Can anyone advise how i do this?

Thanks

Take a look at this diagram it shows you how, click on it to enlarge it.

Regards Pete.

Thanks Pete, looking a little closer Igot the picture wrong, I think it is more likely to be like this:

Also, i can't even see behind it, do i nned to remove it to adjust it?

[alan333]

I can't see the adjusters in the pic but I'm almost certain they're 10mm nuts, one near the top outer edge and one near the bottom inner edge (or perhaps the opposite way round).
