Engine Bay Part ID needed

[Berengaria]

Car is T27 1.8 Petrol Valvematic, 2012.

Looking at the engine from the front, tucked away just under the front right-hand corner of the plastic engine cover is a metal component that the wide air intake tube from the air filter box connects to - what is the name of this part?

Connected to this same part are two narrow rubber hoses secured with small spring band clamps - what is the part number of these clamps?

Unfortunately, not all the diagrams display on  -http://www.japanparts.eu/  If someone can identify it, could you post-up the exploded diagram with this assembly on it?



Cheers!





[Konrad C]

On 1/27/2017 at 9:42 PM, Berengaria said:

Car is T27 1.8 Petrol Valvematic, 2012.

Looking at the engine from the front, tucked away just under the front right-hand corner of the plastic engine cover is a metal component that the wide air intake tube from the air filter box connects to - what is the name of this part?

Connected to this same part are two narrow rubber hoses secured with small spring band clamps - what is the part number of these clamps?

Unfortunately, not all the diagrams display on  -http://www.japanparts.eu/  If someone can identify it, could you post-up the exploded diagram with this assembly on it?



Cheers!





Photos please to help. It sounds like the PCV/ventilation hose. Correct me if I am wrong.

http://www.japan-parts.eu/toyota/eu/2008/avensis/zrt271r-awfepw/2_273560_041_410W/tool-engine-fuel/1201_ventilation-hose

With the cursor over the highlighted partial number, click on it to relieve the full part numbers.



[Berengaria]

Thanks Konrad C - yes, I'd seen that diagram, but the clips didn't seem to be the right ones (more like the wire spring type).

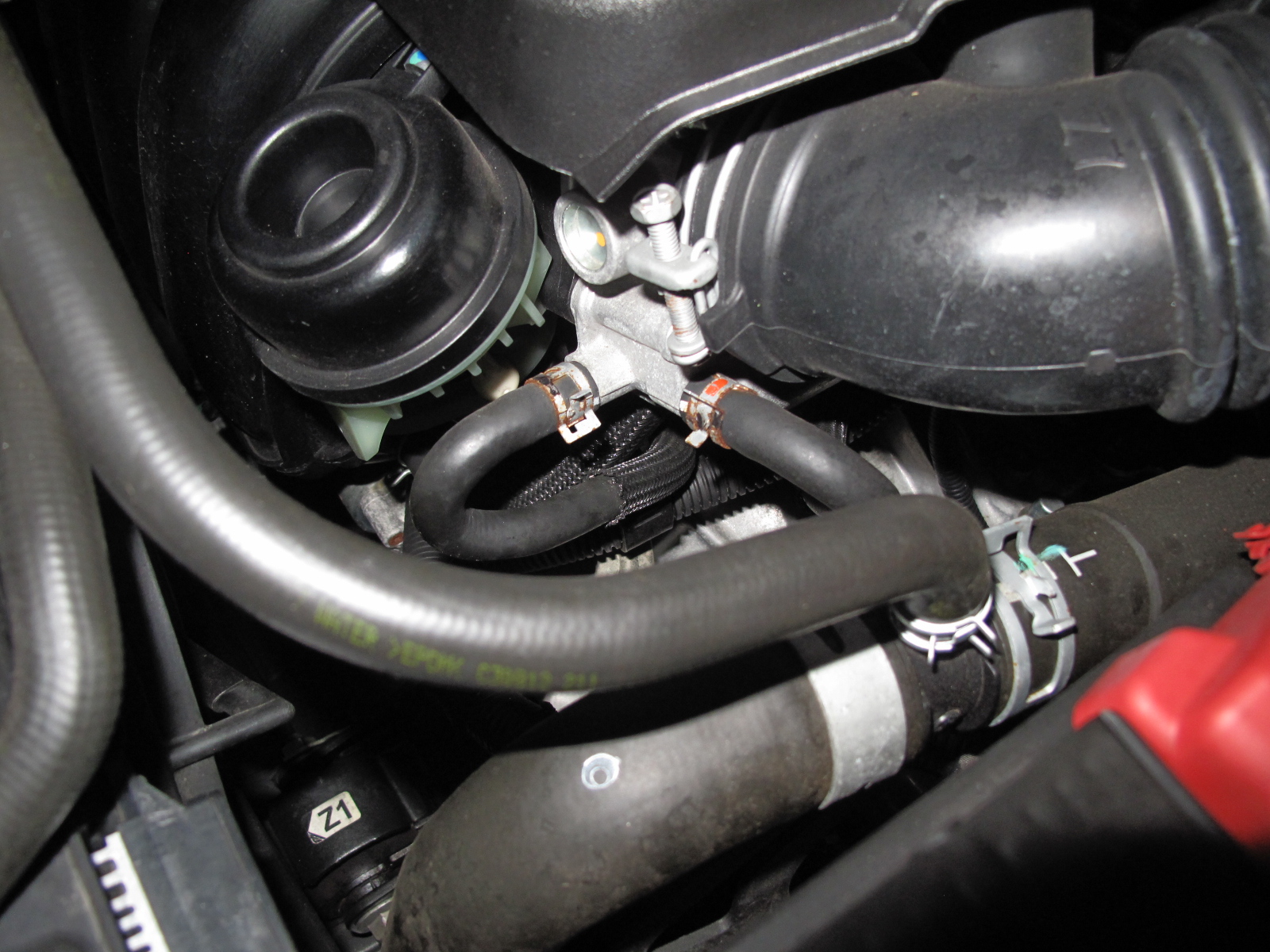

I've now taken a photograph - the two clamps I need are the slightly rusty small ones in the background.

[Devon Aygo]

The "metal part" between the air hose and the manifold is the throttle body and the smaller hoses are coolant feed and return through the throttle body the clamp part numbers are 96137-41501

[Berengaria]

Thanks Devon Aygo!

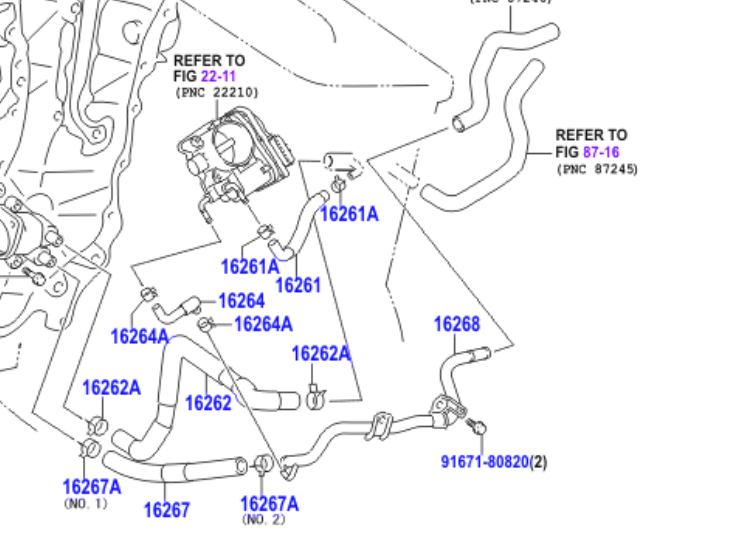

Just to check, these show as different numbers (1624A & 16261A) in the diagram, so are they still the same part no. 97137-41501?

Is this diagram under the manifold section? This is one of the ones that doesn't load up.

Wanting them now with some others for the dealer to replace when it's serviced in a few weeks - hate having tatty, rusty clamps that let down the 'bay.

[Devon Aygo]

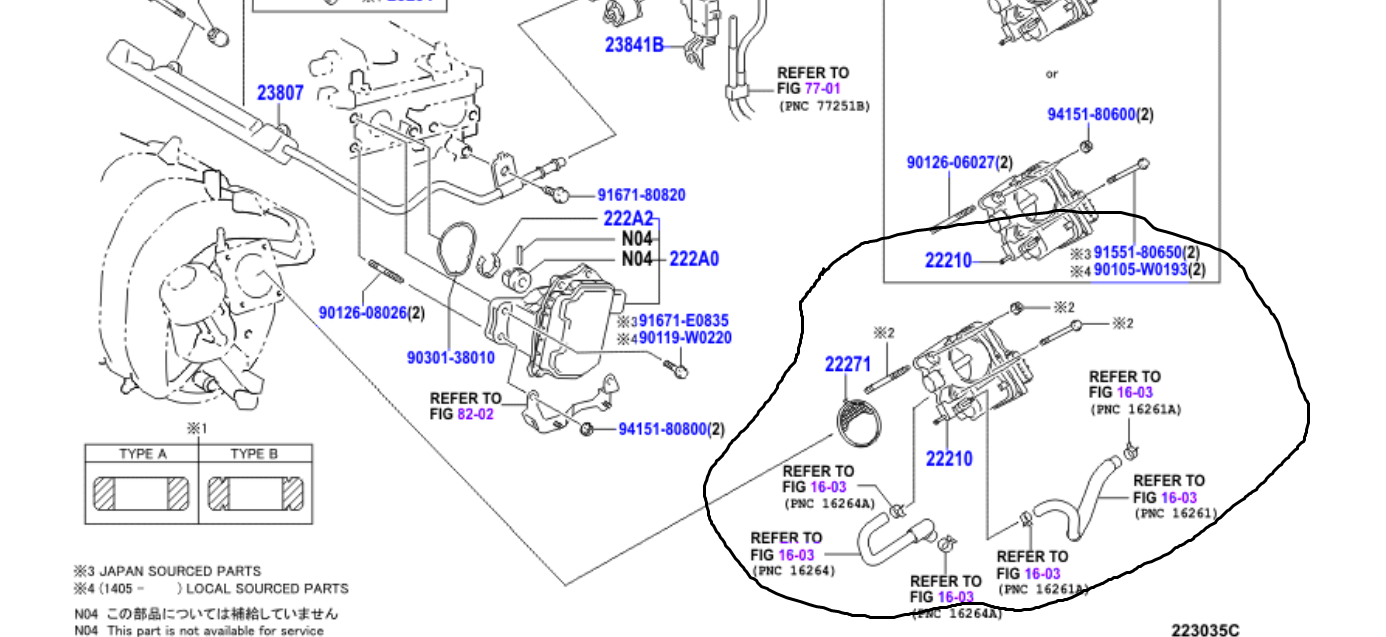

Hi yes they are the same part number, the first picture is the throttle body which shows "refer to figure 16-03" which is the cooling section as the hoses carry coolant

[Berengaria]

That's great - many thanks for that.

This part must be on 'Page 2' of the cooling section? That's one of the other pages that never loads the picture diagram!

[Konrad C]

jack, you are correct with the Japanparts site not loading some of the pages.

I also use ToyoDIY, but have to follow their rules and cannot post the illustrated page. I can confirm that the part number for the clips are as Devon Aygo quoted -  96137-41501

jack in your reply to confirm the part number you quoted 97137-41501. Make sure you quote 96137-41501!

[Berengaria]

Thanks Konrad C - well spotted.

Thankfully it was just a typo in my post and I have ordered the part using the right number. I collect them on Thursday.

Really appreciate both your and Devon Aygo's help with this one.
