head unit pinout

dimkin · 2017-10-08T15:45:08+0000

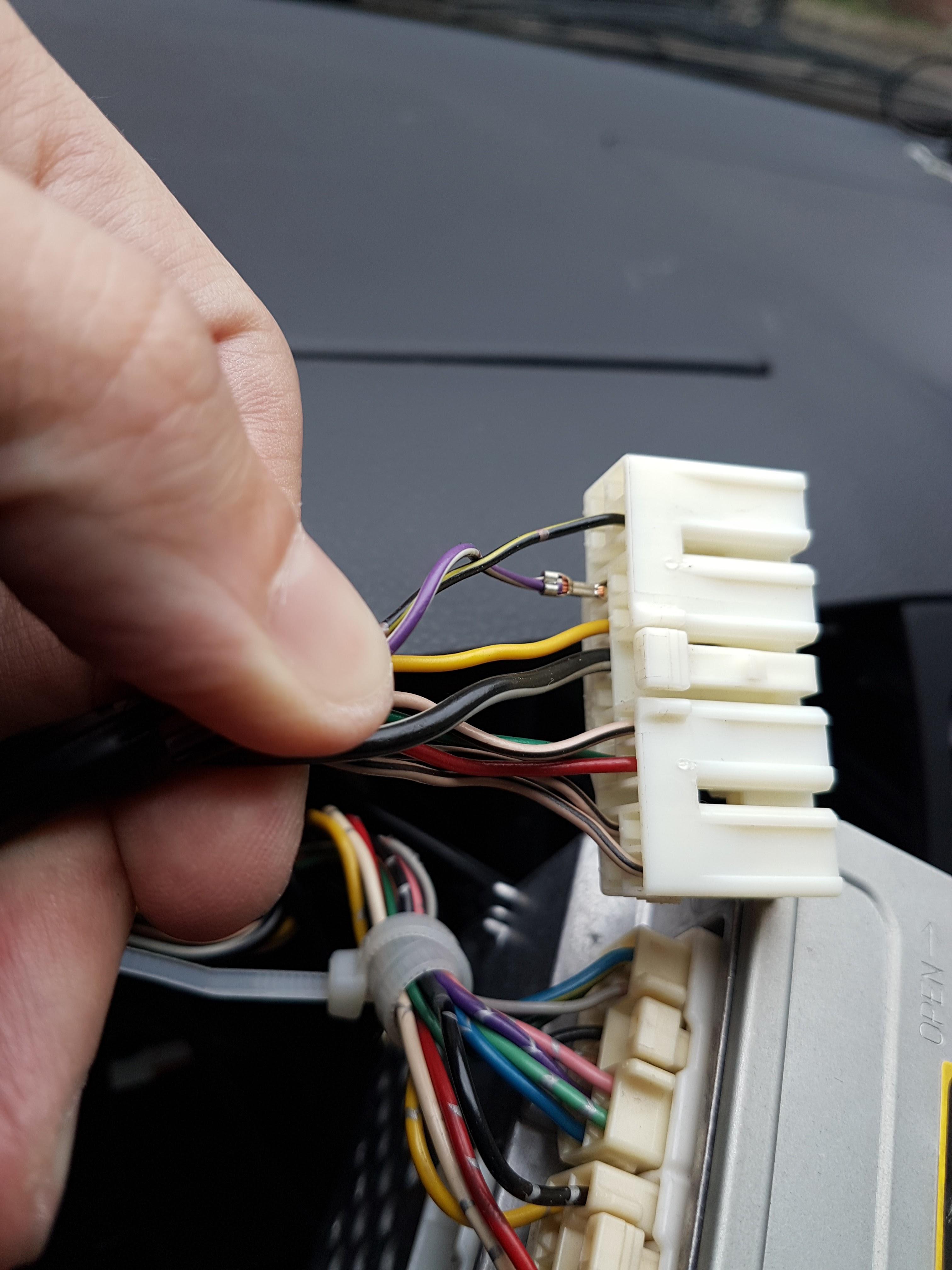

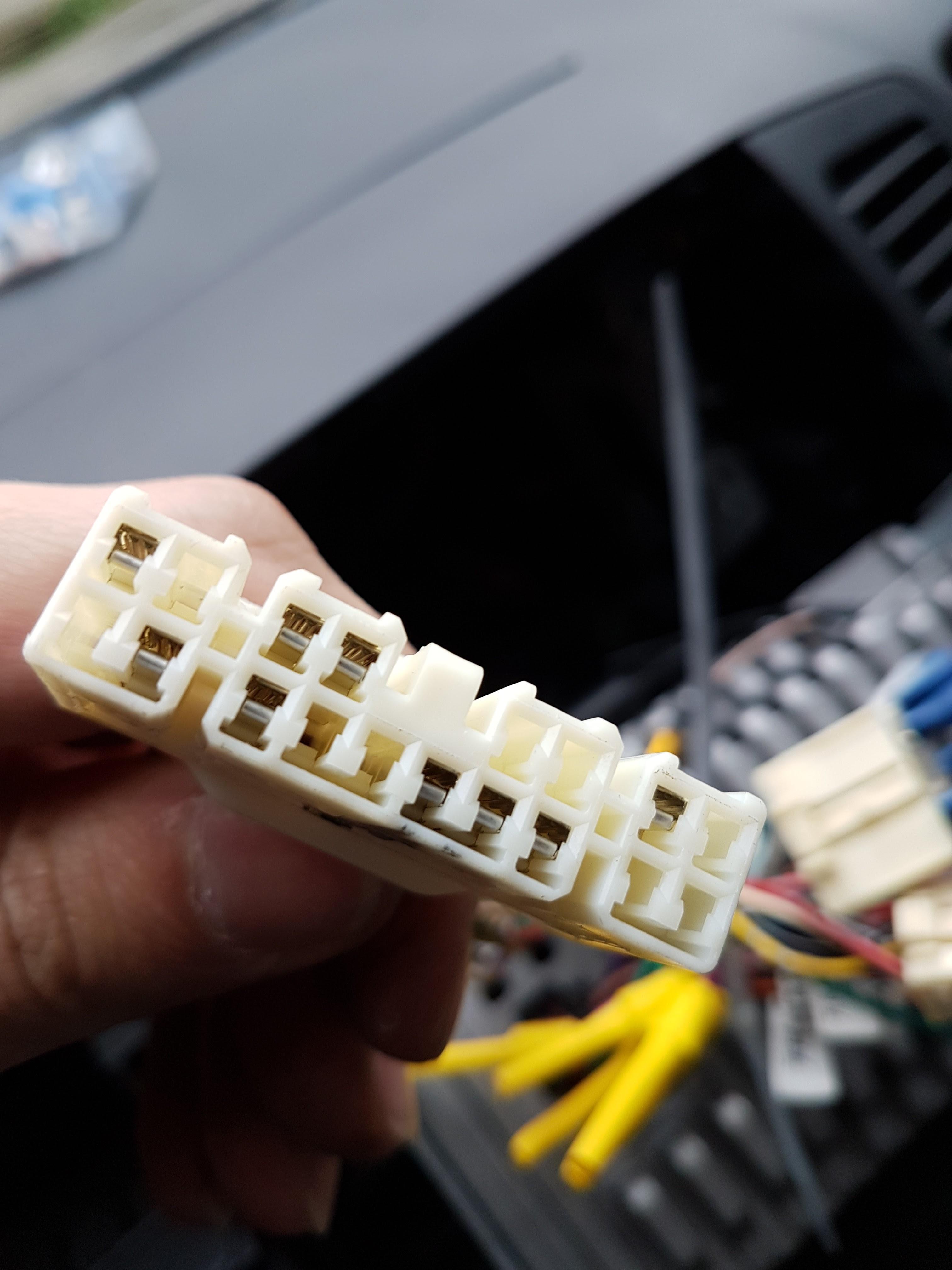

Hi! Can anyone help me to find pinout for head uni? Current is `Toyota 58804` @ front or CQ-TS7170A Problem is - it has dead screen and i replaced it with android 2din head unit. Sad story is - cant get steering wheel buttons to work - there is 2 wires @ new head unit, but not sure which must be used. For sure i know, buttons could be took from 20-pin connector, but cant get right pinout ( all i found - with too many wires )

By dimkin,
October 8, 2017 in Corolla & Corolla Cross Club

https://www.toyotaownersclub.com/forums/topic/179909-head-unit-pinout/
