Back lights wiring

[Massy]

Hi

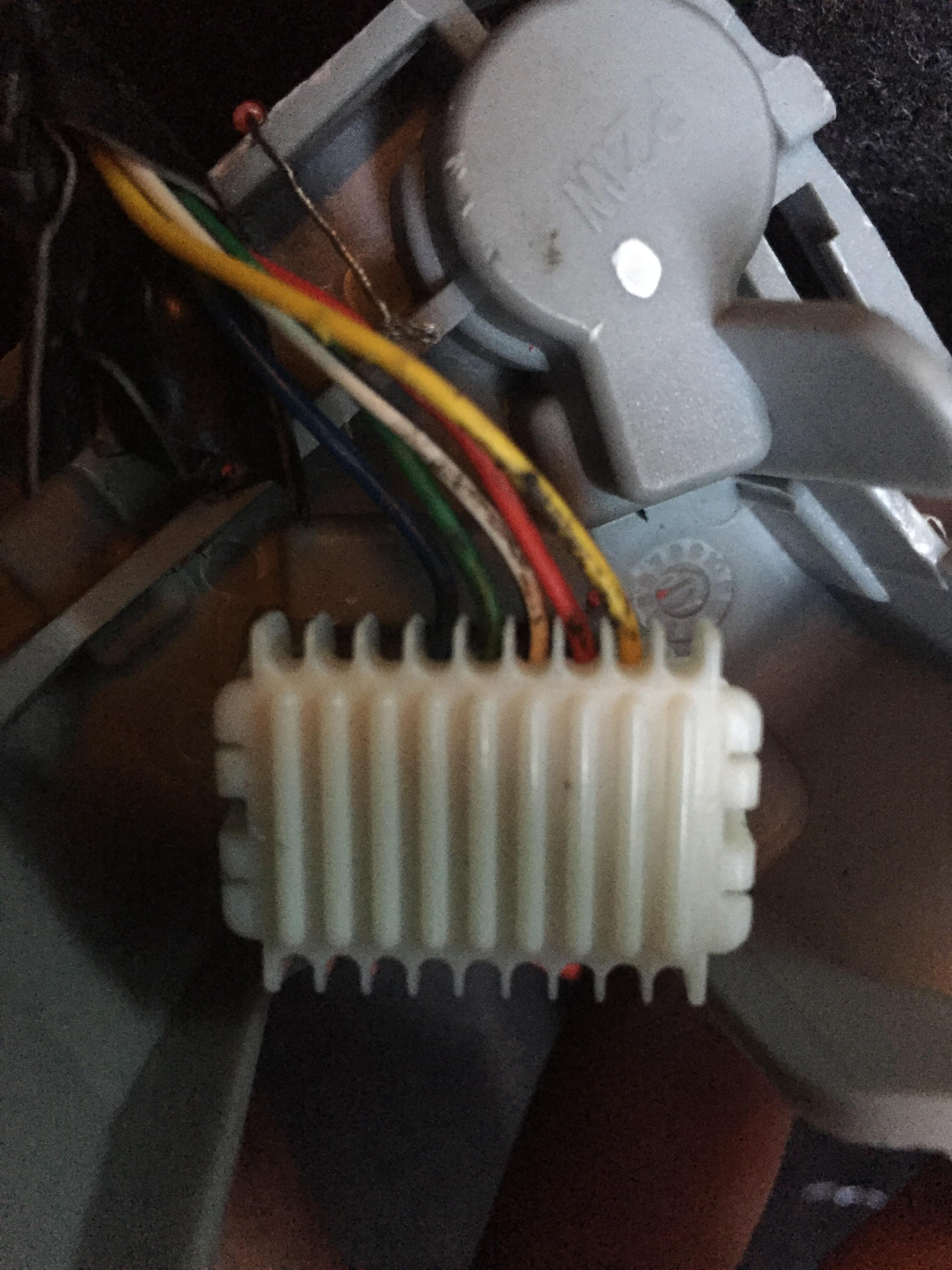

I have an auris 2008 plate but my reverse light was not working so I tried a new bulb still not work. Open the socket and wire came away from the block. I have tried to search online but no luck. Could someone send me where the wires should go in what order? I have just put them in not correct order See photo of what i mean



thanks

[eygo]

use a multimeter on continuity go to the centre of the bulb holder for the reverse light

and touch the centre contact with one of the leads from the meter then using the other

lead touch the other contacts on the back of the light until you get a reading on the meter

you will then know you have found the other end  where the wire has to go.



[Massy]

Thats great but if someone can take a photo of the wiring be gud coz dont have a meter.

[eygo]

we dont have an auris of your model so i cant help you anymore

i'm sure it wont be long until you have the picture you want.



[furtula]

I can snap a 2007 model tomorrow, if no one else replies by then. Should be the same.

You can check out



[Massy]

That be great pal

[DAF XF]

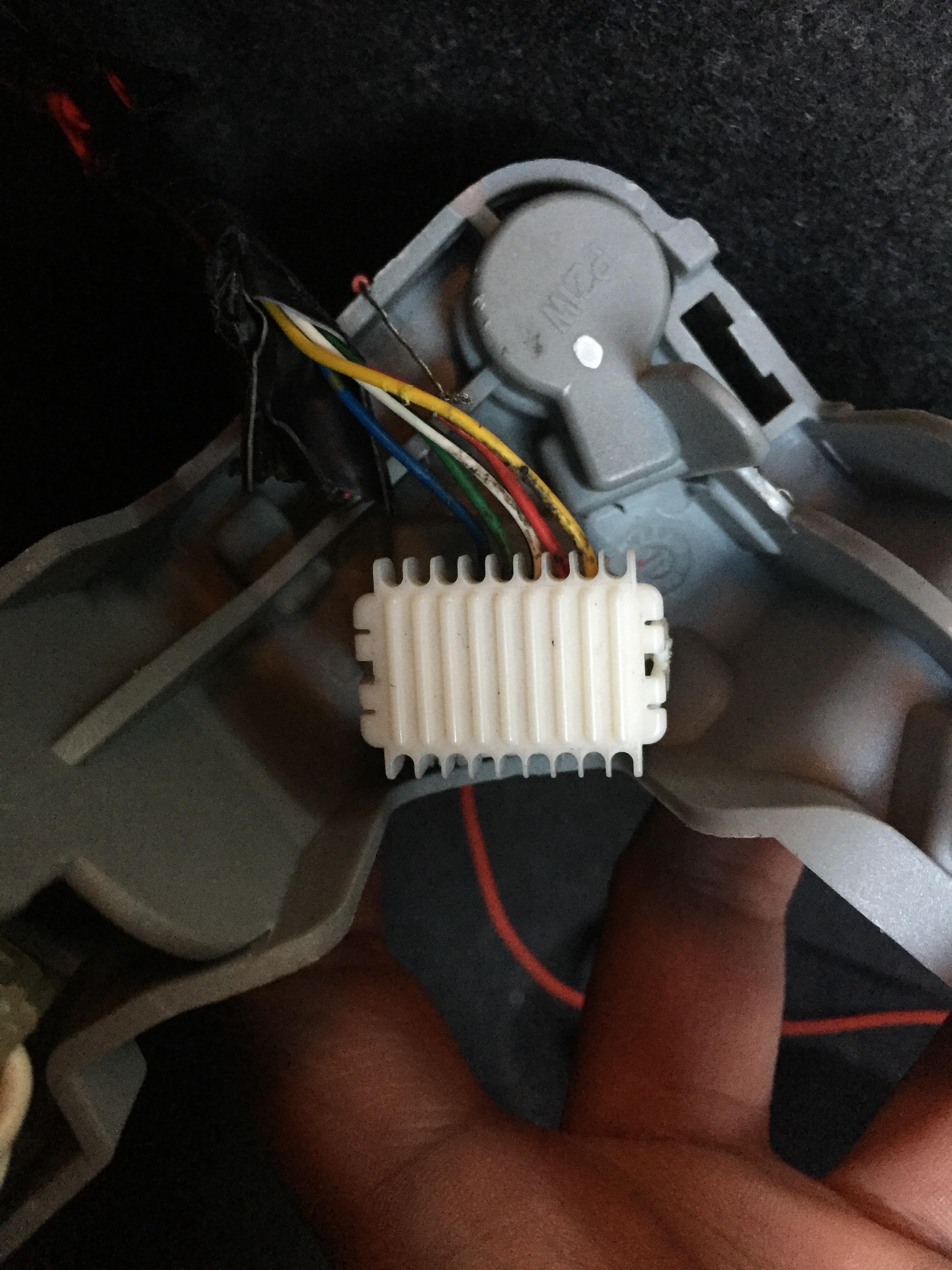

 mine from last Saturday also 2008 with photo

[Massy]

U had any chance to take photo of the wirings it is the passenger side i need please

[DAF XF]

Yeah click on the link to my post it shows it. It was passenger side too

[Massy]

Hi Daf xf

The wiring dont slot in. So how did you manage to slot them in as i try it just doesnt and the wires come back out.

Also which is the fuse for back lights as on the cover i dont see it

thanks

[DAF XF]

Sorry I thought you were just wanting to see what order the coloured wires went back in. Mine didn’t come out so I didn’t have to slot them back in. Maybe someone else can help you better.

[Massy]

Hi

No i did want a photo aswell to see where the wiring slots in.

thanks

[Massy]

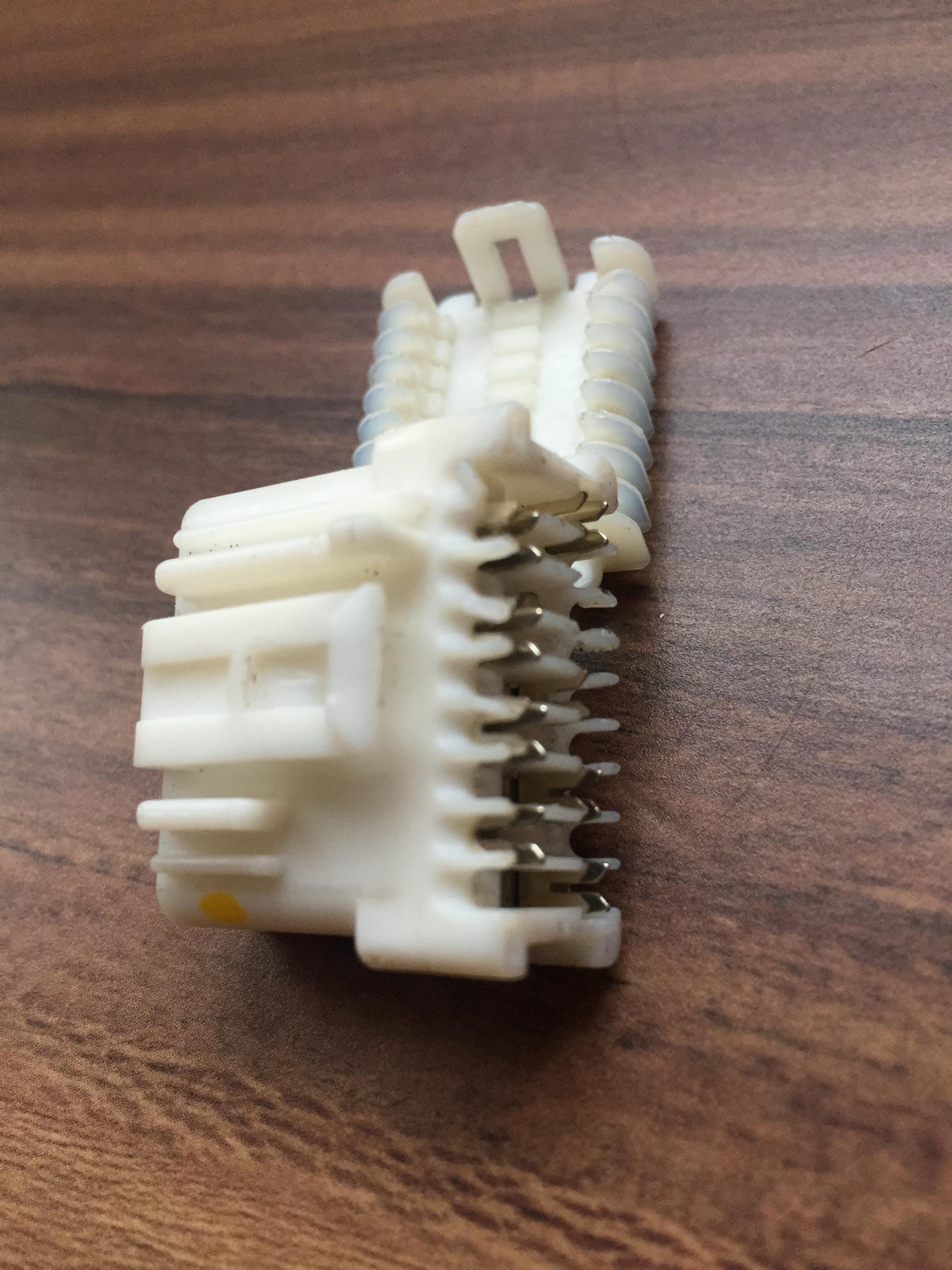

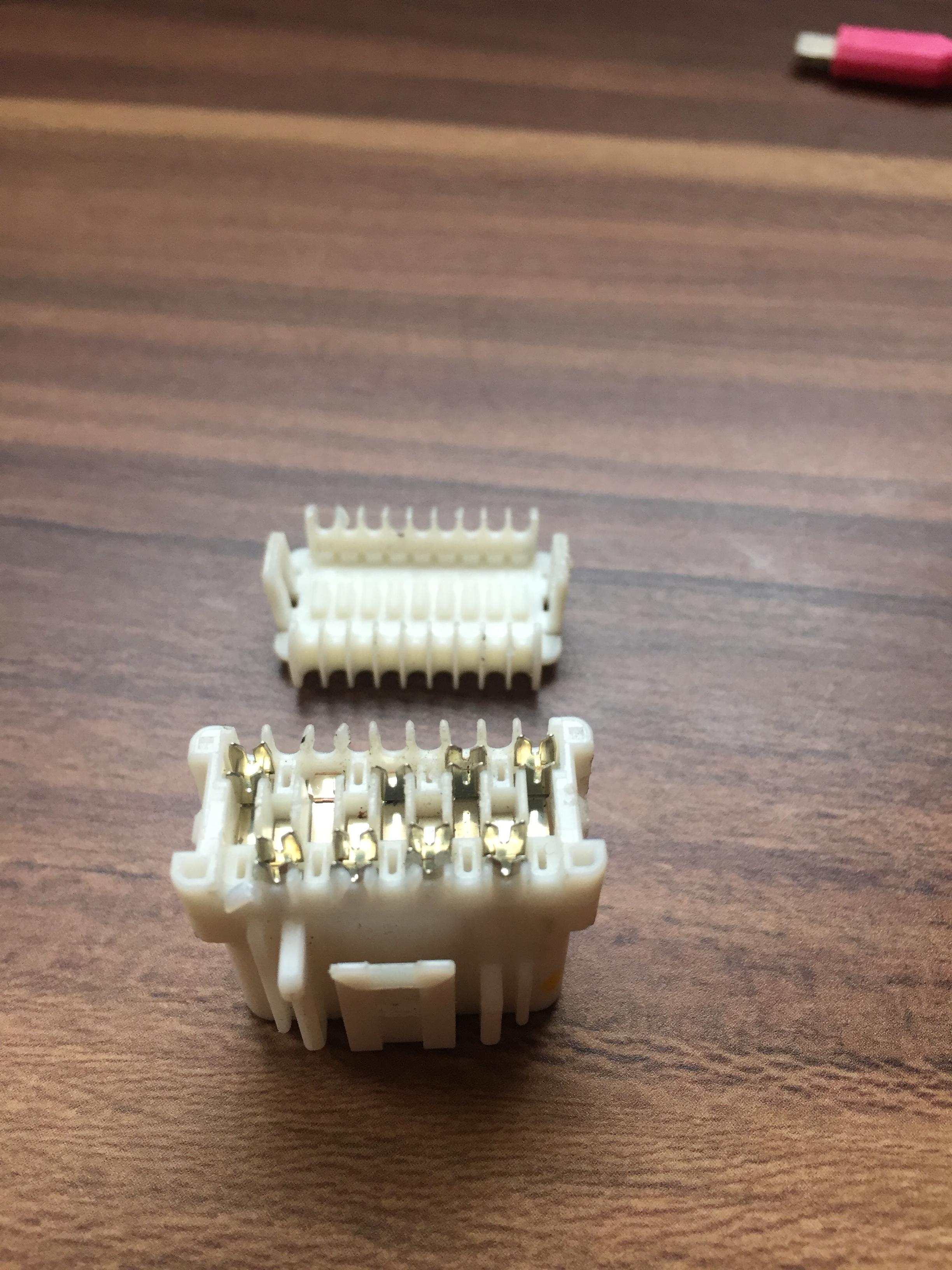

Also if someone can tell me where i can buy a replacement of the below connector

thanks

[eygo]

go to a scrap yard and cut off a good length of wire with the plug

then solder and shrink tube the joins

[tavy]

On 11/18/2017 at 5:33 PM, Massy said:

Hi

I have an auris 2008 plate but my reverse light was not working so I tried a new bulb still not work...

It must be a faulty reverse lamp switch. The switch is located at the upper side of gear box, under the air filter (you have to remove it first). Take its connector out, put a bridge between its pins (red and green wires) and check whether bulb lights up or not, then replace the switch. Of course, first solve the problem with back lamp connector.
