Rear light assembly/cluster.

[mrpj]

Mk 3 2014 Yaris. It has the l.e.d. tail/brake light string. Does the rear bumper moulding have to be removed or partially released for taking off the rear light assembly? There's one accessible nut to remove but from memory there is another fixing behind the bumper.

I don't know how, other than gravity assist, part of the glass bulb from the offside reversing light (wedge lamp) has fallen off and lying at the bottom of the assembly! Bizarre.

[flash22]

i can't quite remember there are 2 or 3 10mm nuts inside and the cluster comes out do need to touch the bumper

Pre- or post-facelift ?? Facelift have the reverse light and fog in the bumper



ps. stick a rag down the hole (dark gaping chasm) below the light as it's a pig to retrieve a nut without popping the bumper and vent off - Don't ask



edit. pre facelift 2 bolts and a stud, tab under the edge of the bumper

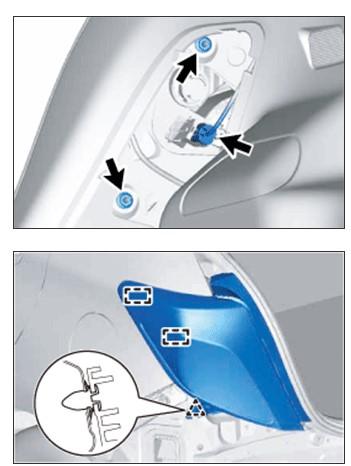

pics for reference

https://www.ebay.co.uk/itm/165065590576



Edit 2. you may be able to release the tab and wiggle the unit out without removing the bumper

[mrpj]

Thanks Bob, that's the exact same cluster in that eBay link. It's just pre facelift, without the grotesque front grille!

Yes, two nuts onto studs attached to the body. I suspected there was another fixing because it will not release with the nuts removed. The piece of bulb is at the bottom of the cluster to the left of the bottom l.e.d.!

I'm inclined to live with it because it isn't affecting anything. What a silly design having that push stud behind the moulding. I'm reluctant to release the moulding because once removed never refit properly.
