Help and Advice Please - Electrical issue

[Stourbridge yaris]

Hi

Thanks in advance

I hope someone will be able to help me.

The power steering, blower heater, indicators and electric windows stopped working on my Yaris. When the breakdown guy came he said that it was due to a loss of live at fuse 22. He said it could be a break in the wiring or the relay.

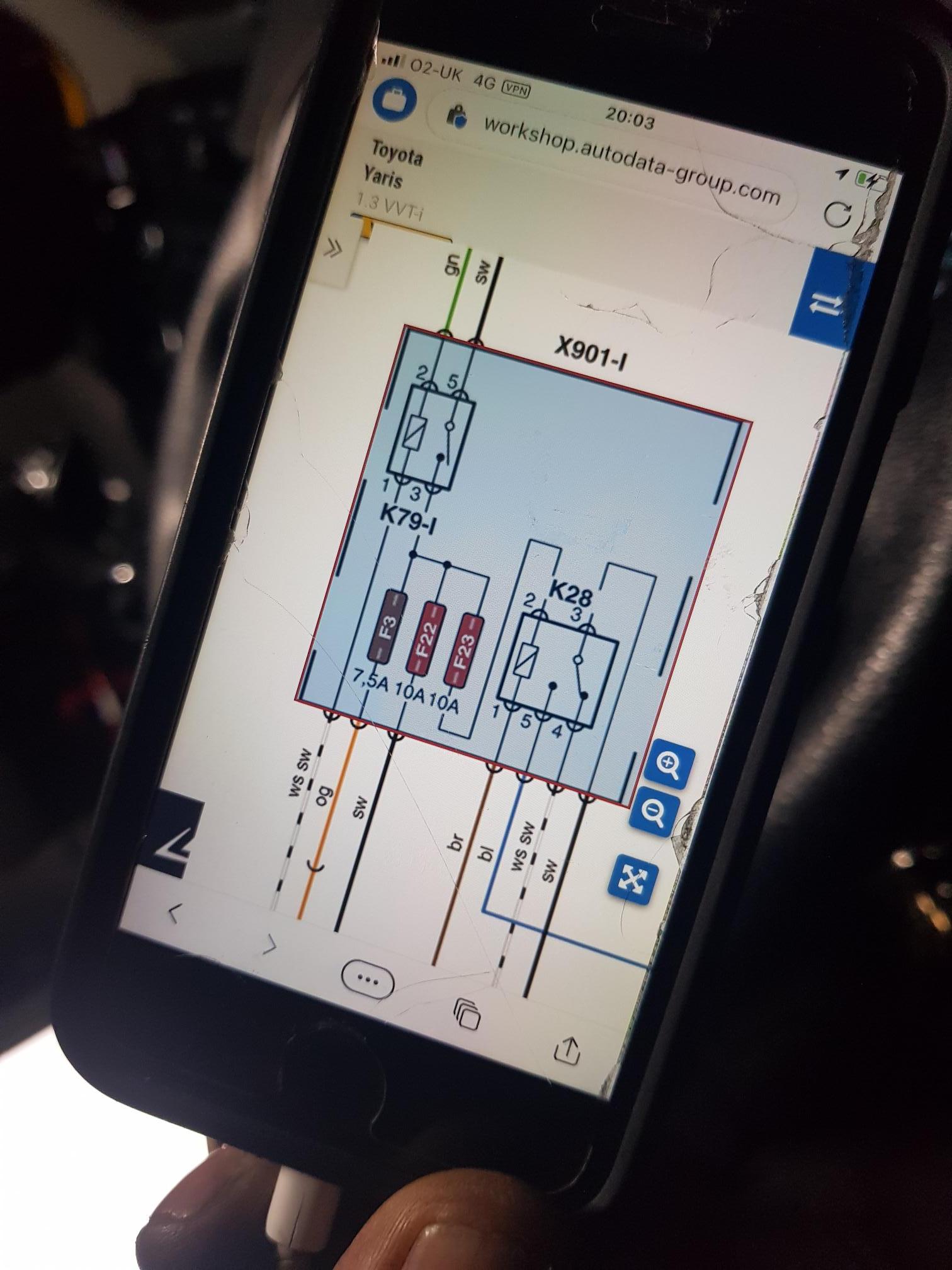

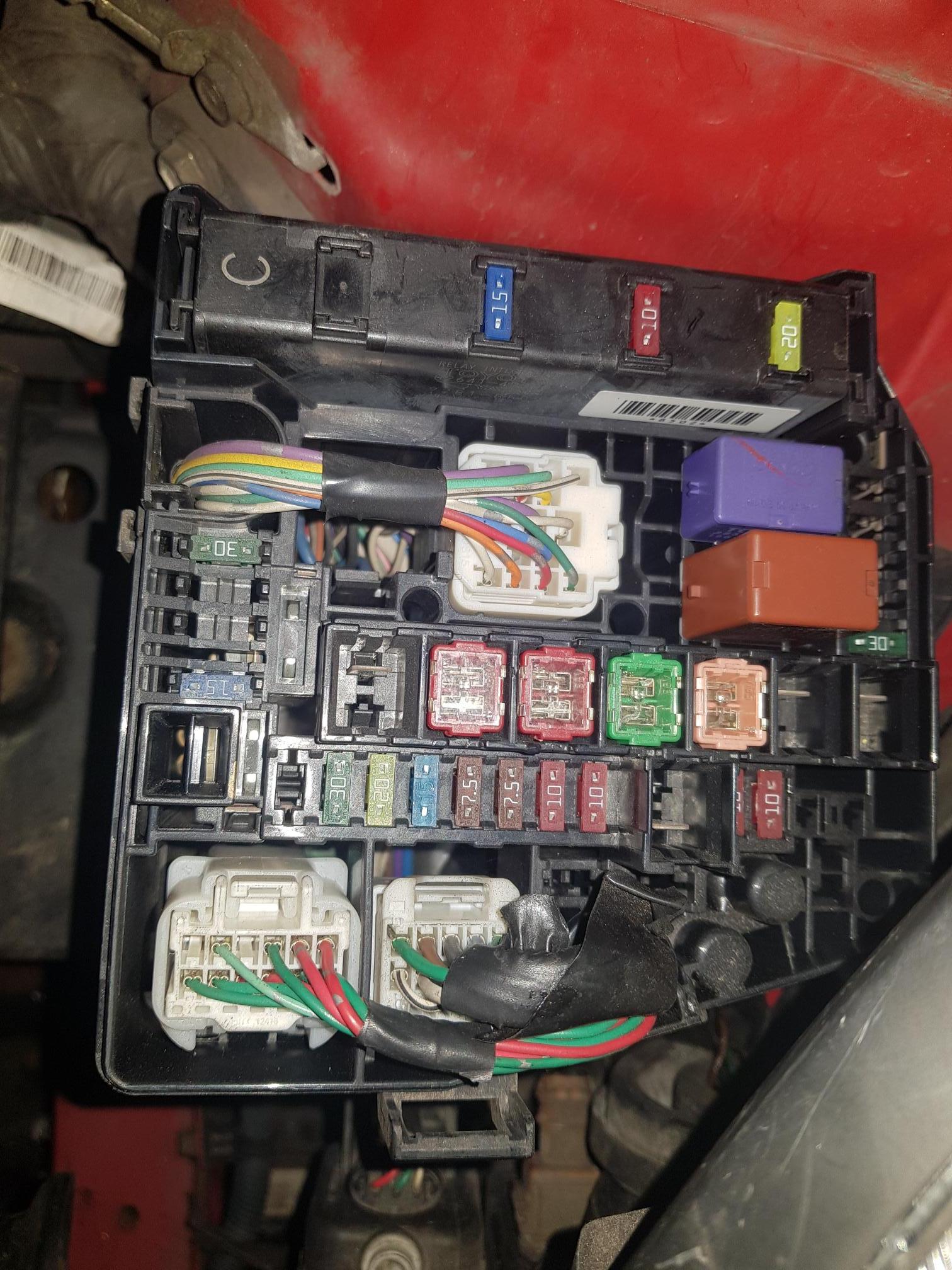

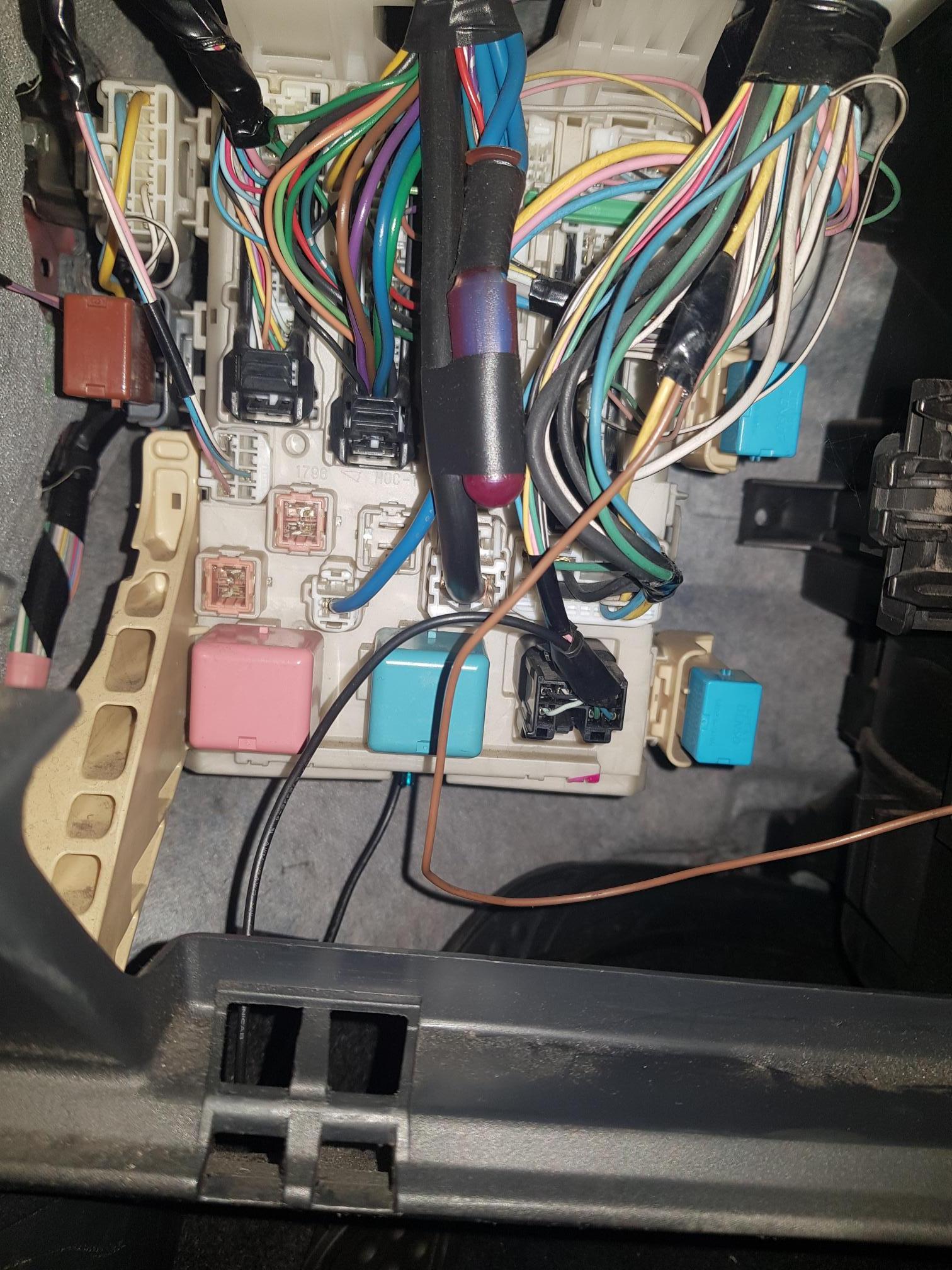

Does anyone know where the relay would be located? He did provide a technical photo which i have attached and i have taken photos of the relays in the car (interior/exterior) but i am not sure which one i need to get replaced.

My car is a 2008 1.3 Yaris

Thanks Again

[flash22]

That relay is built into the black integration module  (with the 3 fuse on top) as in your last pic

eg.

https://www.ebay.co.uk/itm/154803481309

PM me your vin so i can look up the correct part number from your pic i can see 82641-4, but cant see the rest of the number

[Stourbridge yaris]

Thanks..

The VIN is VNKKL96320A311131.

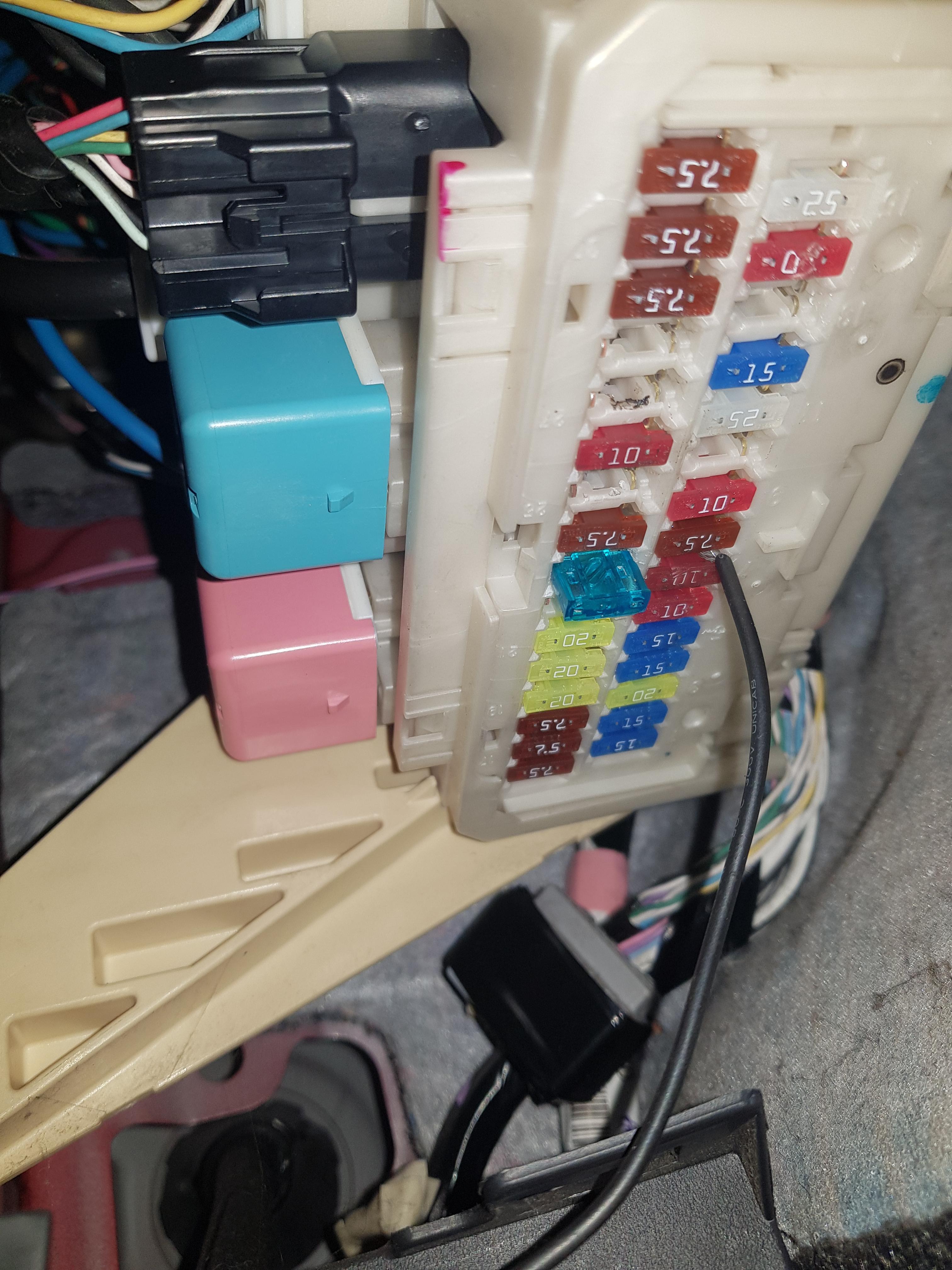

Sorry forgot to mention the breakdown guy did put in a temporary fix to allow me to drive it home by connecting a wire from another fuse to provide power to fuse 22..see photo..not sure if this information will help you narrow the issue..thanks again

[flash22]

That is a quick get you home bodge

the Integration relay is 82641-47020

disconnect the Battery, unplug the cables that go into the relay, un clip the relay and slide it out - slide the new one in, plug it back in, remove the bodge wire, reconnect the Battery

[Stourbridge yaris]

Thanks..for you help..instill see if I can find the part over the weekend and try and see if it is resolved the issue..thanks again for your help

[Stourbridge yaris]

Hi

I have seen the Integration relay  82641-47020 for different models of Toyota. Does this matter so long as it is the same part number or does the integration relay have to be from a Yaris.

[flash22]

As long as the part numbers match, no problem, it's very common for parts to be shared across many cars
