How do I remove this "horizontal" climate control panel?

[TurboYarii]

Hi,

Greetings from Finland!

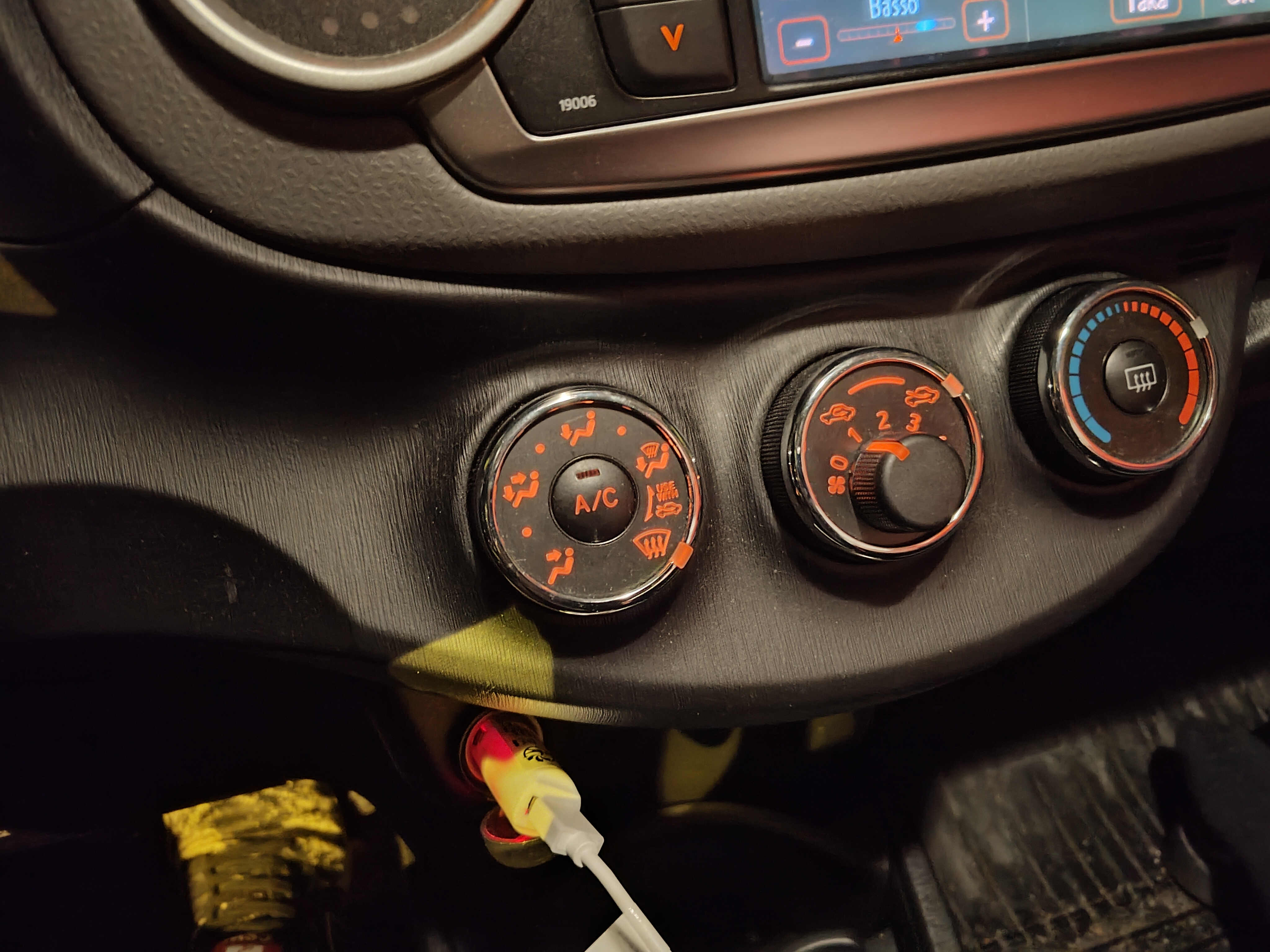

So I recently got this 2012 Yaris to drive around with, but in the climate controls the right most (temp control) bulb is out, it's quite annoying in these dark winter evenings, so I would like to try to fix it. I've tried to search the internets on how to remove the climate control panel, but I only can find instructions for a vertical one (older I guess), but not for this one.

How would I go about removing this panel? Consider me a total noob. I should have them panel tools somewhere in the storage from some old life though...

Also, if someone would magically have some part# for the bulb that would be amazing.

Thanks!

[flash22]

The whole trim with the 3 knobs comes off in one piece

Pics for reference

https://archiwum.allegro.pl/oferta/panel-nawiewu-toyota-yaris-iii-55406-0d490-i11632209540.html

[TurboYarii]

On 2/11/2023 at 7:06 PM, flash22 said:

The whole trim with the 3 knobs comes off in one piece

Pics for reference

https://archiwum.allegro.pl/oferta/panel-nawiewu-toyota-yaris-iii-55406-0d490-i11632209540.html

Thanks man! I was able to get it loose from below, but looking at the pics at the site you posted, it kinda looks like the upper panel would need to be taken off first to get the whole thing out, I'll look in to it.

[flash22]

Pop the dash pad off, forgot i posted this

Mk3 Manual AC removal.pdf

[display namev3]

Hey! Did you get this resolved? I'm running into the same issue now :(

[flash22]

Have a read of the above PDF

[GAS86GR]

Hi guys same issue here anyone has the file that contains removal instructions of the ac panel?thanks in advance

[flash22]

Have a read of the above PDF

[jimaros]

On 2/15/2023 at 4:30 PM, flash22 said:

Pop the dash pad off, forgot i posted this

Mk3 Manual AC removal.pdf 301.97 kB · 32 downloads

Is there a way I could get hold of this kind of PDFs for mk4 Yaris?

Wouldn't want to bother you all the time for whatever comes in mind...

[flash22]

officially it is a paid service, you can have a look at the 3 door gr website, the basics are the same but the electrical and engine/drivetrain are very different

https://www.toyaris4.com/toyota_yaris_xp210_2020_reapir_and_service_manual-386.html

I do have wiring diagrams for the Mk4 if required
