12v from window connectors

[Vins213]

Hi all, I need your help...which wire (or number on the plug) is for +12v and ground in a 2017 Yaris Hybrid? All 4 the controller, not only main LHD
I have the wiring diagram but not for +/-12v and I'm thinking to do a work, so I know I have to disasseble the controller and check the 12v but I don't have the car til august



@flash22 🍻

[flash22]

the main power is fed directly to the window motors, the window switch is just a control side circuit

4 electric windows - Pin 1 - white/black, Pin 6 - Gray

4 20a door fuses and a 30a Power windows fuse

[Vins213]

12 minutes ago, flash22 said:

the main power is fed directly to the window motors, the window switch is just a control side circuit

4 electric windows - Pin 1 - white/black, Pin 6 - Gray

4 20a door fuses and a 30a Power windows fuse

I remember that I blew up a 30a fuse LOL



so, I can take 12v power source from pin 6 (+) and pin 1 (-) from all 4 switches...thanks, as always!

[flash22]

yes but put an appropriate fuse inline

[Vins213]

4 minutes ago, flash22 said:

yes but put an appropriate fuse inline

ok, so I have to buy 5 inline fuses (one for the main, the other 4 for the doors)



I wanna install this kit, the old one got damaged thanks to interior cleaning



New kit



far greater quality than the other one I had installed a year ago

[flash22]

no, just the 12v feed to the module

[Vins213]

19 minutes ago, flash22 said:

no, just the 12v feed to the module

but there are 5 modules with +/- pairs on each one

[Vins213]

I have already installed the window switches with the light on all the doors, this ambient LED kit has 4 slave modules and a master module, I could put a 5A inline fuse (or 2.5A) on each module...the main 12v source for the master is from the start button (like the old kit that worked perfectly), the 12v source for the 4 slave modules that are inside the door connected with pin 6 and pin 1



the new kit: https://it.aliexpress.com/item/1005005657359652.html?gatewayAdapt=glo2ita

[Vins213]

@flash22 hi Bob, I have disconnected all the third part things and now I have the start/stop illumination button that does not turn off (the OEM one, I never changed it)

even if I lock the car after 15-20mins, the illumination on the button is still on

[flash22]

disconnect the Battery for 15 to 20 mins

[Vins213]

8 minutes ago, flash22 said:

disconnect the battery for 15 to 20 mins

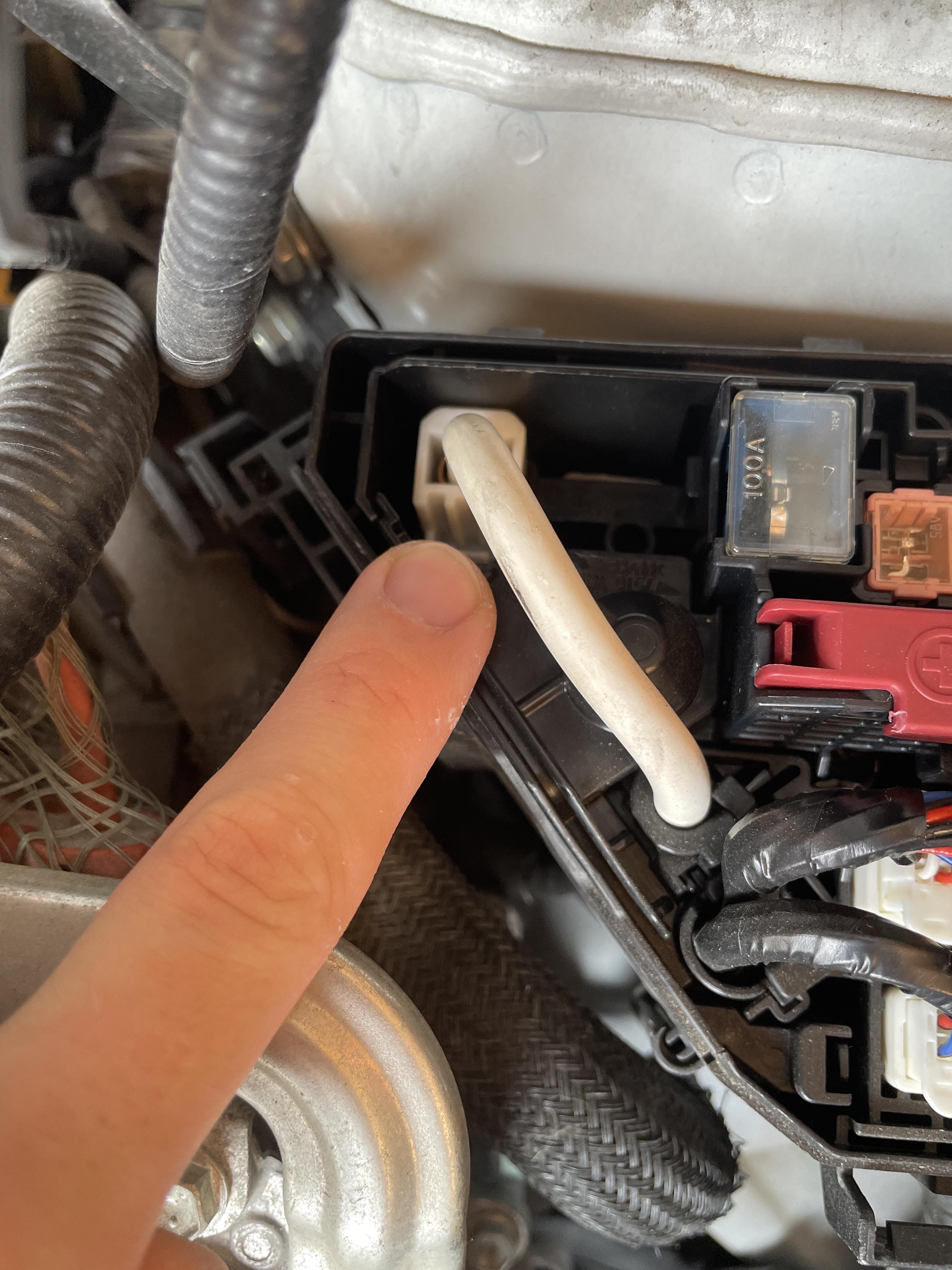

It has been disconnected for all night long from the big white wire



Do I have to disconnect from the Battery?

see the other notification on the other thread 🙏🏼

[flash22]

yes from the Battery

[Vins213]

3 hours ago, flash22 said:

yes from the battery

1h fully disconnected, nothing has changed
