Wireless Android Auto unit - hiding the cables

[CosmicNonsense]

I have a three-button head unit with Android Auto. I have just ordered an AAWireless unit so I can avoid plugging my phone in.

What leads, sockets and plugs would I need to do the following:

1. Re-route the AAwireless so I can keep it plugged in and hidden inside the dashboard.

2. Run a new USB lead from a fuse-tap to the OEM socket, so it still looks neat and tidy.



I'm pretty sure this is doable, albeit a little tricky, so if you know then thanks in advance  🙂









[Paul john]

Shrink cable wrap is your friend

[CosmicNonsense]

30 minutes ago, Paul john said:

Shrink cable wrap is your friend

That would be fine if I knew which wires to splice without messing everything up.

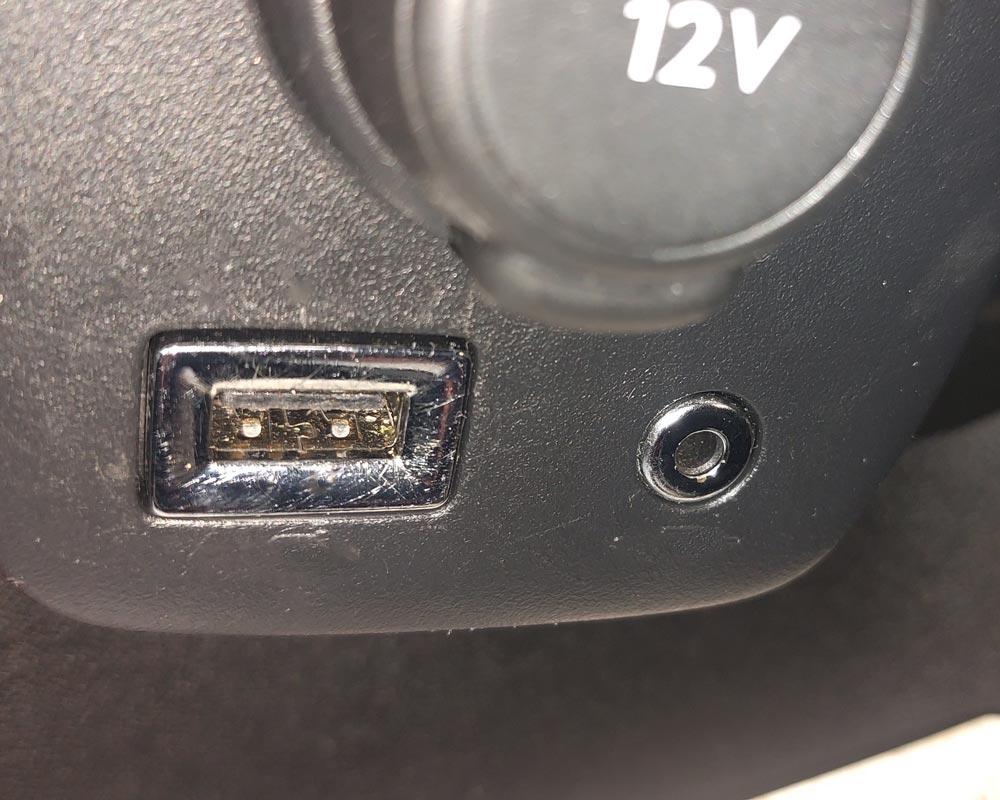

I'm figuring that, this socket should be fairly easy to unclip and hide inside the dash, with the AAWireless plugged into it:

But, I'd then need to fill the vacant hole - routing a USB cable would be the easy part, but is there any kind of USB socket that fits neatly into this space?





[Paul john]

27 minutes ago, CosmicNonsense said:

That would be fine if I knew which wires to splice without messing everything up.

I'm figuring that, this socket should be fairly easy to unclip and hide inside the dash, with the AAWireless plugged into it:

But, I'd then need to fill the vacant hole - routing a USB cable would be the easy part, but is there any kind of USB socket that fits neatly into this space?





That doesnt look very usb to me



[CosmicNonsense]

It's the standard USB 3 Android Auto / Car Play port - it's just very scratched up.

[flash22]

socket view or wire side of the plug

1 - 5V

2 - Data -

3 - Data +

4 - Gnd



[Vandals01]

Or to keep everything factory and reversible, just order 2 connectors.



This one from the Head Unit to the Android Auto Wireless dongle:

https://www.aliexpress.com/item/1005004763446969.html



This one from the factory USB wire to a USB charger:

https://www.aliexpress.com/item/1005004008824779.html

[CosmicNonsense]

6 hours ago, Vandals01 said:

Or to keep everything factory and reversible, just order 2 connectors.



This one from the Head Unit to the Android Auto Wireless dongle:

https://www.aliexpress.com/item/1005004763446969.html



This one from the factory USB wire to a USB charger:

https://www.aliexpress.com/item/1005004008824779.html

Yes, this will do it - and easy to reverse if and when I sell the car. Thank you 🙂
