Estima 3ct Injector Pump Timing

[allmodels]

I have just rebuilt the engine in a Toyota Estina and need to time the injector pump.

I can't get any info (have searched the forum to no avail) which seems pretty common.

What I need to know is the injector pump timing in mm. i.e plunger lift at TDC.

If anyone could help it would be appriciated.

engine type is a 3CT

[propnut]

You are better off asking this question on either

www.estima-motoring.co.uk

or

www.estimaowners.com

[Akif Janjua]

Hi,

I am also looking for plunger lift @TDC for toyota 3C-T.. any luck ?

[rhrinesp]

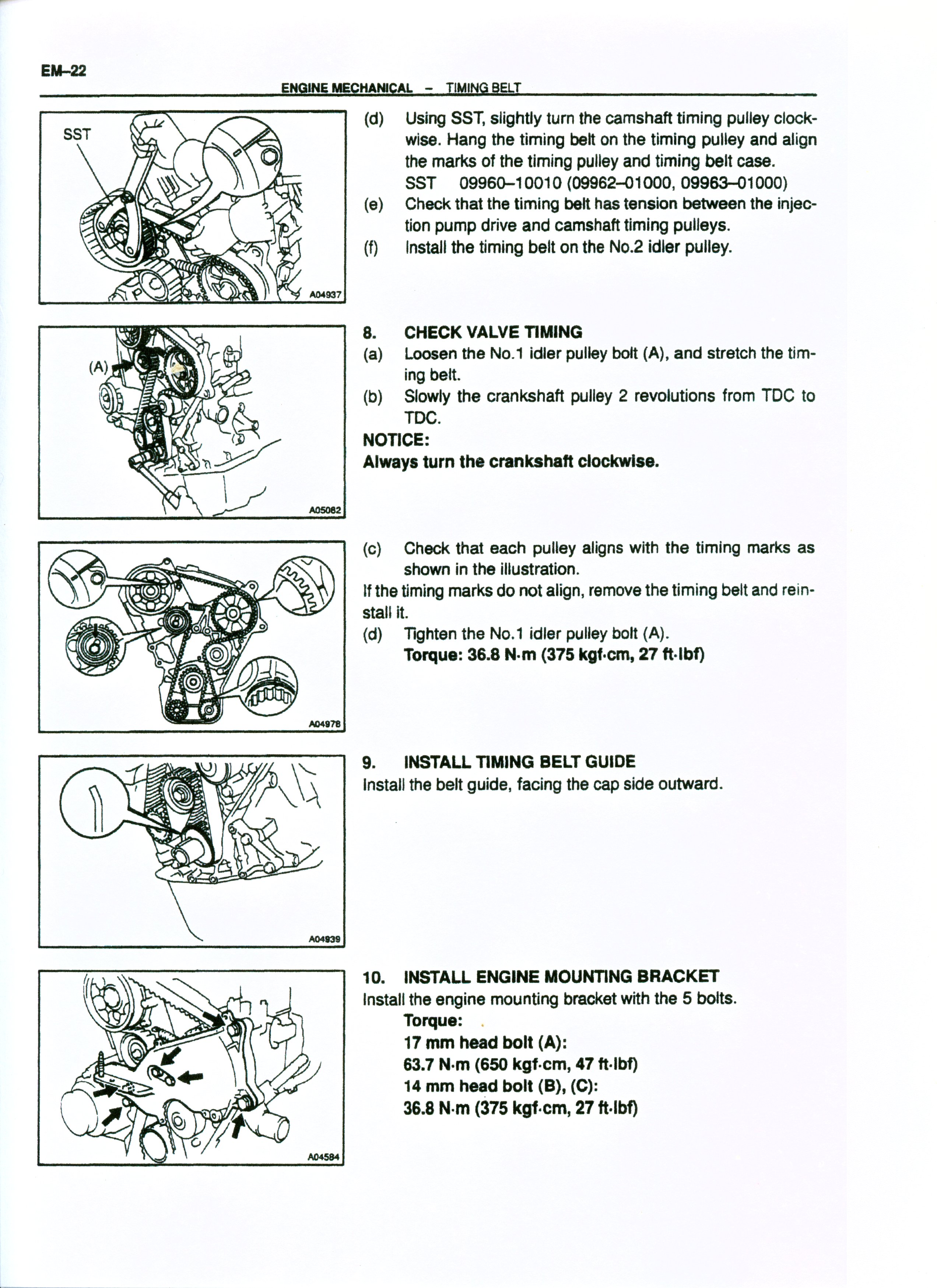

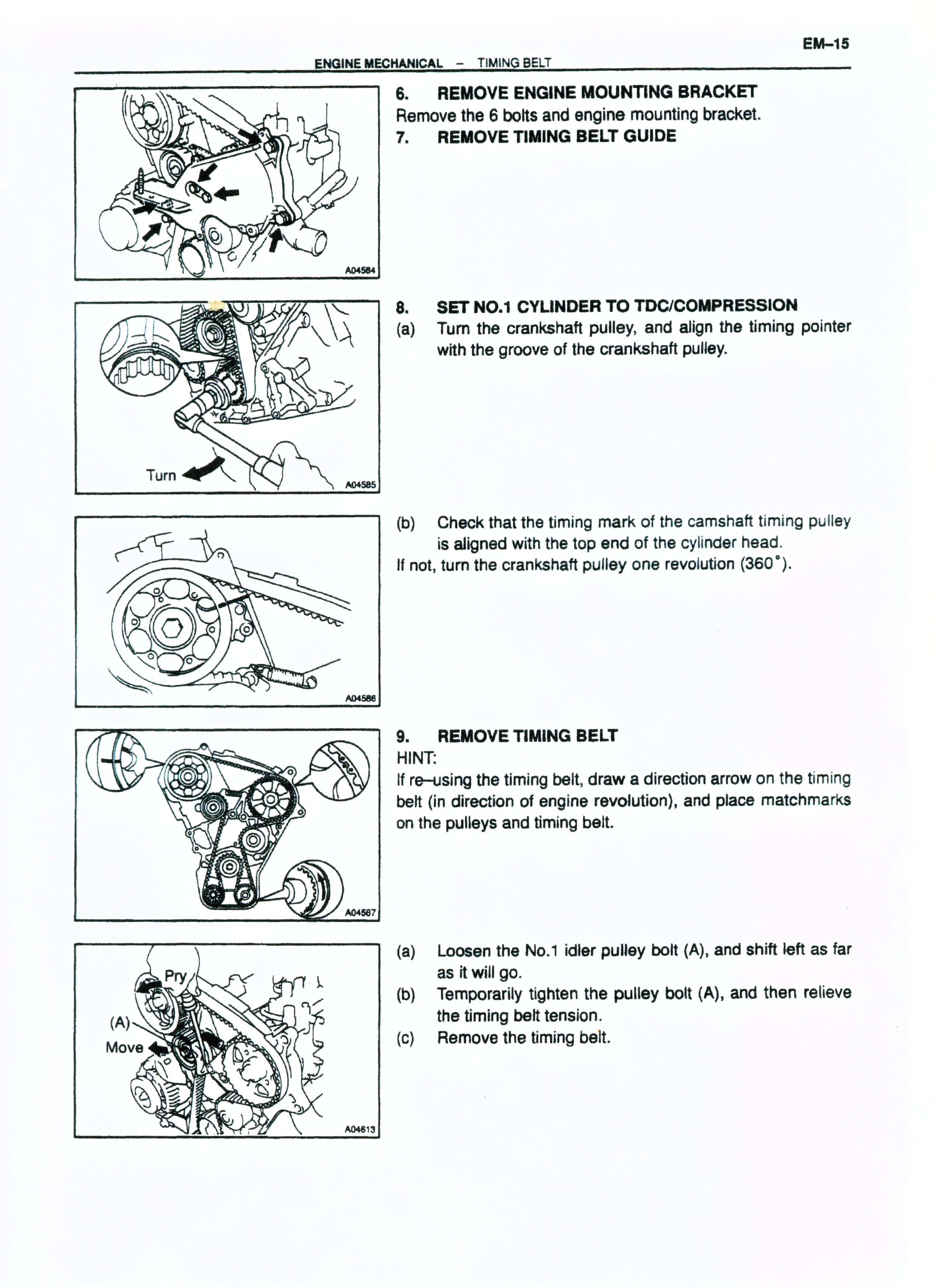

This may be usefull

[Owen =O)]

The pump is located to the drive pulley via a woodruff key so if the cambelt has not been disturbed the timing should be ok .

You can by slackening off the two pump mounting bolts and the pump support bracket at the pump head end rock the pump by hand wit the engine running till you hit the sweet spot, then nip the bolts back up. The bottom one is a bit of a pig to get to but a small socket set with a wobble extension bars makes it a bit easier.
